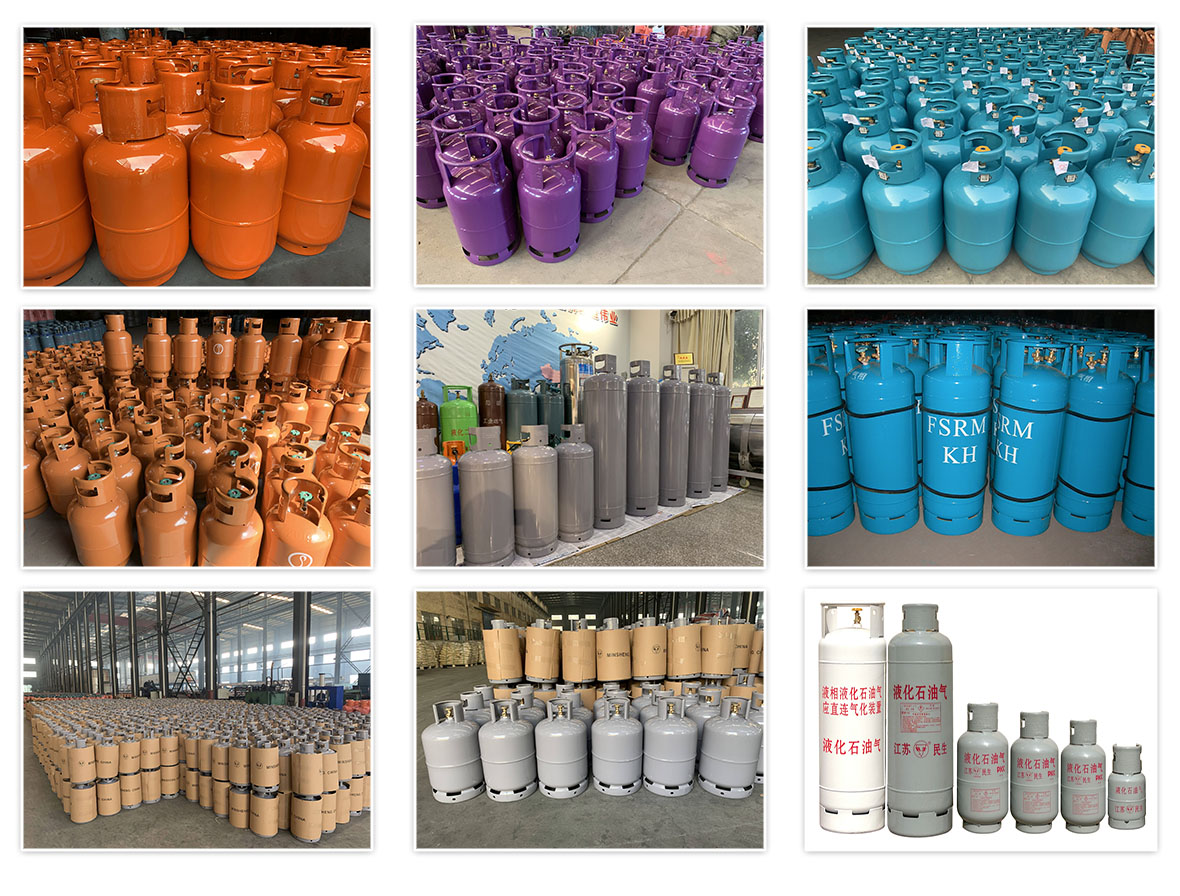

民生液化气瓶、液化气储罐以其优良的品质、良好的耐用性、高安全性和稳定的价格成为国内外客户的首选。
我们的液化气瓶已出口到50多个国家，符合TPED/ASME/KGS/ISO/GB标准。
民生与一些国际知名的检验机构，如BV/TUV/SGS/DNV/LR等建立了长期合作关系，由他们进行工厂审核或出具第三方测试报告。
产品参数:
| 型号 | 气瓶外直径(公称外径)mm | 公称容积/L | 允许充装量/kg | 封头形状系数 | 护罩直径/mm | 底座直径/mm |
| YSP12/4.9 | 249 | 12.0 | 4.9 | K=1.0 | 190 | 240 |
| Y5P23.9/10 | 280 | 23.9 | 10.0 | K=1.0 | 190 | 240 |
| Y5P29.8/12.4 | 300 | 29.8 | 12.4 | K=1.0 | 190 | 240 |
| YSP35.5/14.8 | 320 | 35.5 | 14.8 | K=0.8 | 190 | 240 |
| YSP118/49.5 | 407 | 118 | 49.5 | K=1.0 | 230 | 400 |
| YSP118/液/49.5 | 407 | 118 | 49.5 | K=1.0 | 380 | 400 |
| 容积 | 充装重量 | 外径 | 总高 | 阀门型号 | 制造标准 |
| Volume（L） | Filling weight(kg) | Diameter(mm) | Total Height(mm) | Model of value | Manufacturing standard |
| 1.2L | 0.5kg | 140mm | 170mm | G5/8.G3/8. M22×1.25/M16 ×1.5/M19.8/ M21.8/M27/0.885 -14-NGO-LH/ W22.5/14×1.5/ 20/22/25/ φ27orcustomer requirements |
1S04706/ EN1442/ GB5842/ DOT4BA/ KGs |
| 2.4L | 1kg | 160mm | 270mm | ||
| 4.8L | 2kg | 215mm | 230mm | ||
| 4.7L | 2kg | 205mm | 270mm | ||
| 6.02L | 2.75kg | 203mm | 245mm | ||
| 7.2L | 3kg | 205mm | 347mm | ||
| 7.2L | 3kg | 202mm | 350mm | ||
| 7.2L | 3kg | 210mm | 265-290mm | ||
| 7.2L | 3kg | 210mm | 280mm | ||
| 7.2L | 3kg | 210mm | 290mm | ||
| 12L | 5kg | 232mm | 380-420mm | ||
| 12L | 5kg | 250mm | 420-440mm | ||
| 12L | 5kg | 250mm | 390mm | ||
| 12L | 6kg | 300mm | 290mm | ||
| 13L | 6kg | 300mm | 300mm | ||
| 14.4L | 6kg | 300mm | 310mm | ||
| 16.8L | 7kg | 300mm | 410mm | ||
| 22L | 9kg | 300mm | 520/540mm | ||
| 24L | 10kg | 310mm | 540mm | ||
| 23.5L | 10kg | 320mm | 526mm | ||
| 26.2L | 11kg | 300/302mm | 500-600mm | ||
| 26.5L | 12.5kg | 308mm | 547mm | ||
| 35.5L | 15kg | 320mm | 680mm | ||
| 40-43L | 18kg | 306mm | 825mm | ||
| 47L | 20kg | 311mm | 855mm | ||
| 50L | 21kg | 300-320mm | 845-940mm | ||
| 54L | 22kg | 300mm | 1000mm | ||
| 72L | 30kg | 306mm | 1230mm | ||
| 108L | 45-48kg | 380mm | 1230~1280mm | ||
| 108L | 45-48kg | 406mm | 1130mm | ||
| 118L | 50kg | 406mm | 1200mm |
